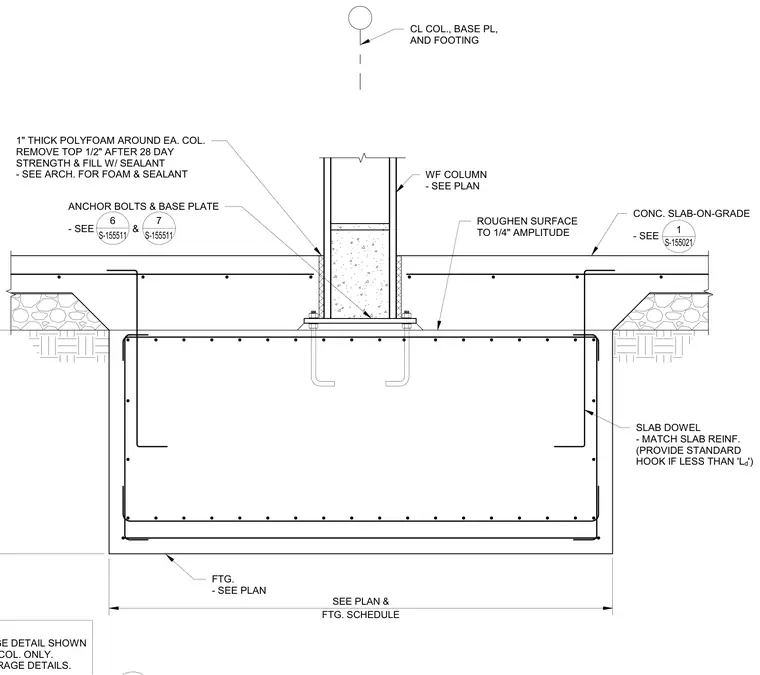

An interior concrete spread footing supports a wide-flange steel gravity column anchored via a base plate. The top surface of the concrete footing is roughened to one-quarter inch amplitude beneath the column base plate. A one-inch thick polyfoam wrap surrounds each column through the concrete slab-on-grade depth, with the top half-inch removed after twenty-eight-day strength and filled with sealant. Slab dowels match the slab reinforcement and include standard hooks if less than development length. This anchorage detail applies to non-moment-frame columns only.
ANCHOR BOLTS & BASE PLATE - SEE & 1" THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. FOR FOAM & SEALANT CONC. SLAB-ON-GRADE - SEE 6 S-155511 7 S-155511 WF COLUMN - SEE PLAN CL COL., BASE PL, AND FOOTING ROUGHEN SURFACE TO 1/4" AMPLITUDE SLAB DOWEL - MATCH SLAB REINF. (PROVIDE STANDARD HOOK IF LESS THAN 'L d ') FTG. - SEE PLAN THE ANCHORAGE DETAIL SHOWN IS FOR NON-BF COL. ONLY. FOR BF ANCHORAGE DETAILS. FTG. SCHEDULE SEE PLAN & 1 S-155021
