Metal Deck Bearing Angle at Wall

Materials

anchor

Elements

Beams Walls Decks Anchors / Embeds

Connections

Base Plate / Anchorage Bolted Connection

About this detail

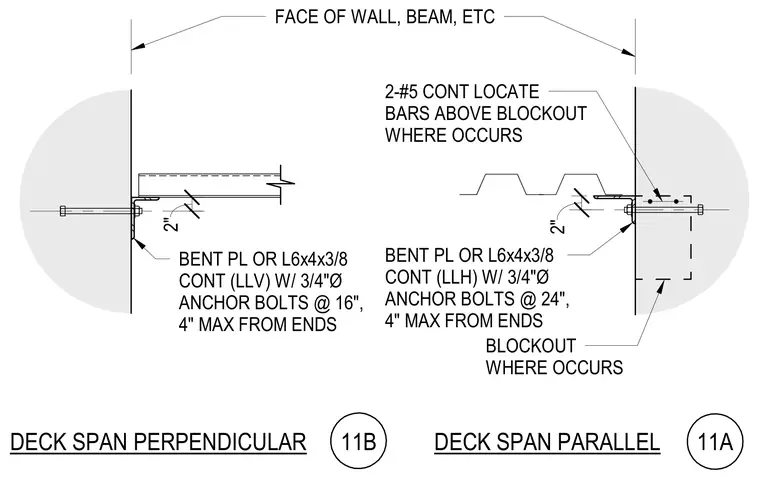

Continuous bent plates or L6x4x3/8 angles anchor metal deck bearings to walls, beams, or other vertical faces. The parallel configuration uses three-quarter-inch diameter anchor bolts spaced at sixteen inches on center with four-inch maximum ends. The perpendicular configuration uses three-quarter-inch diameter anchor bolts spaced at twenty-four inches on center with four-inch maximum ends, supplemented by two continuous number five reinforcing bars located above blockouts where applicable.
