Structural · S-XM532

BRBF Column Base Plate and Gusset Connection

Materials

Elements

Walls Floors / Slabs Bracing Anchors / Embeds Connections / Plates

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Bolted Connection Embed Plate

About this detail

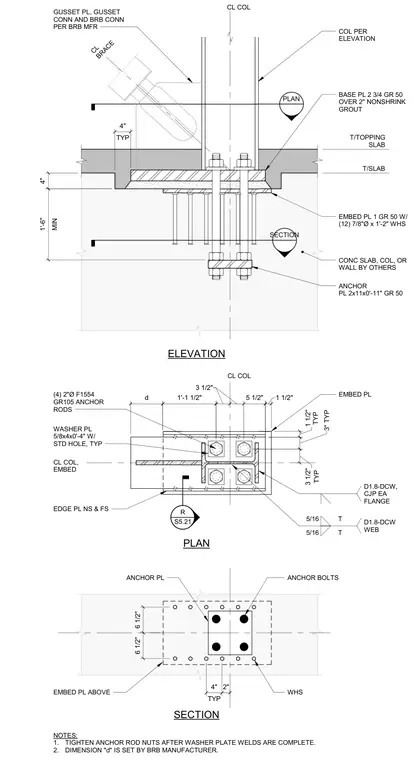

A buckling-restrained braced frame column base plate rests on a two-inch nonshrink grout bed over a concrete slab or foundation. The base plate is fabricated from Grade 50 steel and anchored using twelve 7/8-inch diameter headed studs welded to an embed plate, supplemented by four 2-inch diameter F1554 Grade 105 anchor rods. An anchor plate measuring 2 by 11 by 0-11 inches Grade 50 is provided below with washer plates at the anchor locations. The column flange and web connections utilize complete joint penetration welds in accordance with D1.8-DCW standards. A gusset plate connects the buckling-restrained brace to the assembly per the manufacturer requirements. Anchor rod nuts must be tightened after the washer plate welds are complete, and dimension "d" is set by the brace manufacturer.
