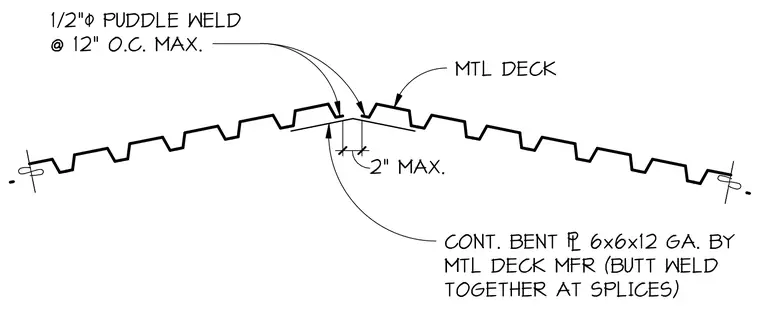

Metal deck sections meet at a roof ridge over a continuous bent plate measuring six by six inches and twelve gauge, supplied by the metal deck manufacturer and butt welded together at splices. The metal deck is secured with one-half-inch diameter puddle welds spaced at a maximum of twelve inches on center. A maximum two-inch clearance gap is maintained at the ridge transition.
MTL DECK 1/2"- PUDDLE WELD @ 12" O.C. MAX. CONT. BENT ; 6x6x12 GA. BY MTL DECK MFR (BUTT WELD TOGETHER AT SPLICES) 2" MAX.
