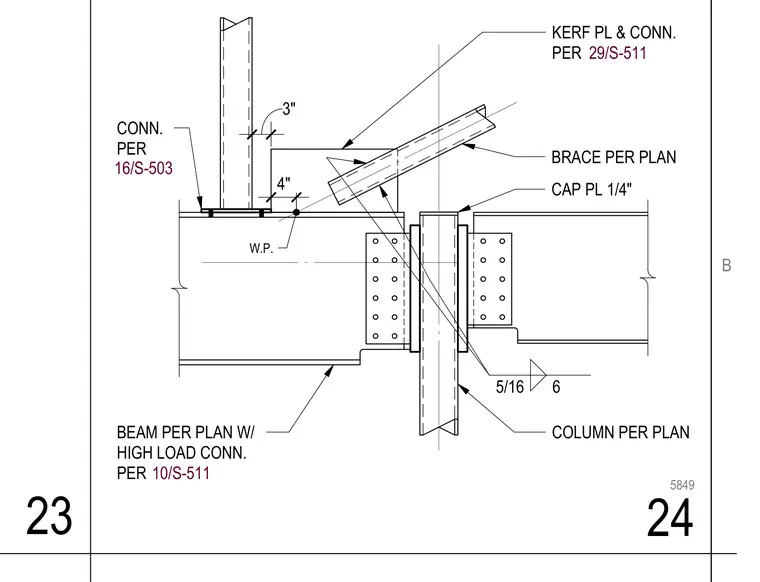

A structural steel brace connects to a column and beam assembly utilizing a kerf plate and high-load connections. A quarter-inch cap plate caps the column, while a brace member ties in with specific working point dimensions of three inches and four inches. Connections are specified per plan and referenced to specific standard details. Fillet welds of five-sixteenths size secure the framing members at designated locations.
COLUMN PER PLAN 5/16 6 3" 4" W.P. BEAM PER PLAN W/ HIGH LOAD CONN. PER 10/S-511 KERF PL & CONN. PER 29/S-511 BRACE PER PLAN CONN. PER 16/S-503 CAP PL 1/4" B 23 24 5849
