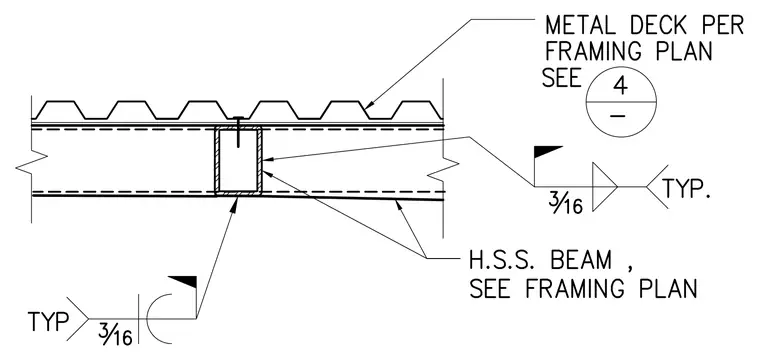

Metal deck bears directly on a hollow structural section beam, sized per the framing plan. A three-sixteenth-inch fillet weld with field-weld flag indicator connects the components typically. An additional three-sixteenth-inch fillet weld with a back-gouging or sealing symbol is detailed on the underside. A mechanical fastener secures the metal deck flutes to the top flange of the hollow structural section beam.
