A crane support beam and rail provided by the crane supplier is mounted on a W12x65 typical haunch connected to a structural steel column. A concrete over metal floor deck, sized per plan, bears on a steel beam connected to the column via a bolted shear tab. The installation requires coordination with the crane supplier for the beam and rail assembly.

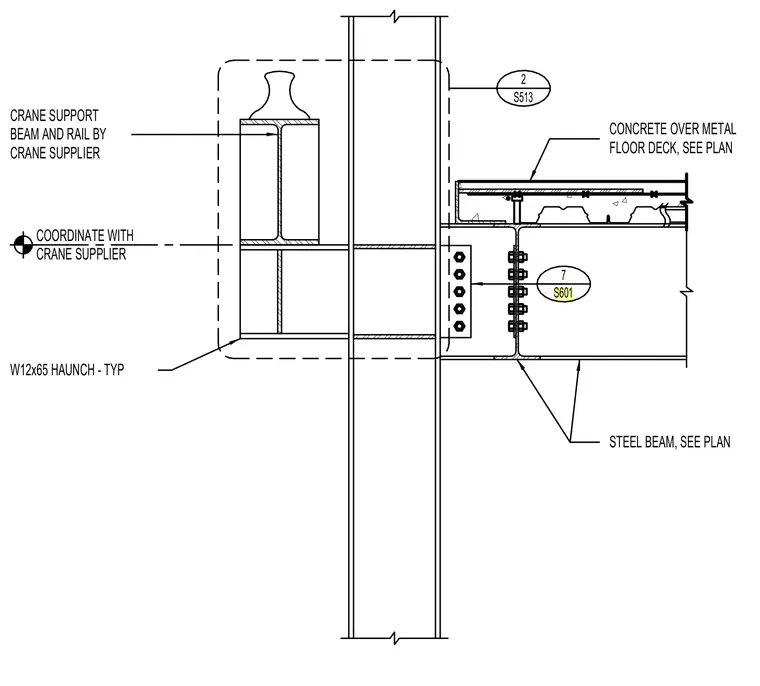

7 S601 2 S513 BEAM AND RAIL BY CRANE SUPPLIER CRANE SUPPORT STEEL BEAM, SEE PLAN CONCRETE OVER METAL FLOOR DECK, SEE PLAN COORDINATE WITH CRANE SUPPLIER W12x65 HAUNCH - TYP
