Structural · S-XKG6C

Typical Anchor Rod Detail

Materials

Concrete Steel Masonry / CMU

Elements

Columns Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Welded Connection Bolted Connection Embed Plate

About this detail

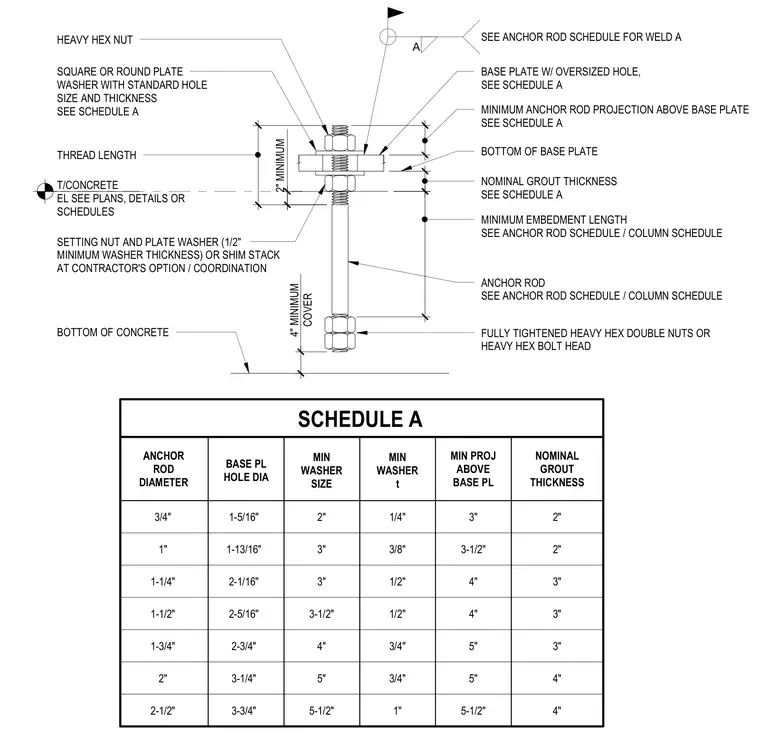

A column base plate anchorage assembly is embedded in concrete. The anchor rod features fully tightened heavy hex double nuts or a heavy hex bolt head at the embedded end, with a minimum concrete cover of four inches. Above the concrete surface, a setting nut and plate washer with a minimum thickness of one-half inch, or a shim stack, supports the base plate over a nominal grout thickness. A square or round plate washer with a standard hole size and thickness sits atop the base plate, secured by a heavy hex nut. The base plate contains an oversized hole with specific projection lengths and thread lengths detailed in Schedule A.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
