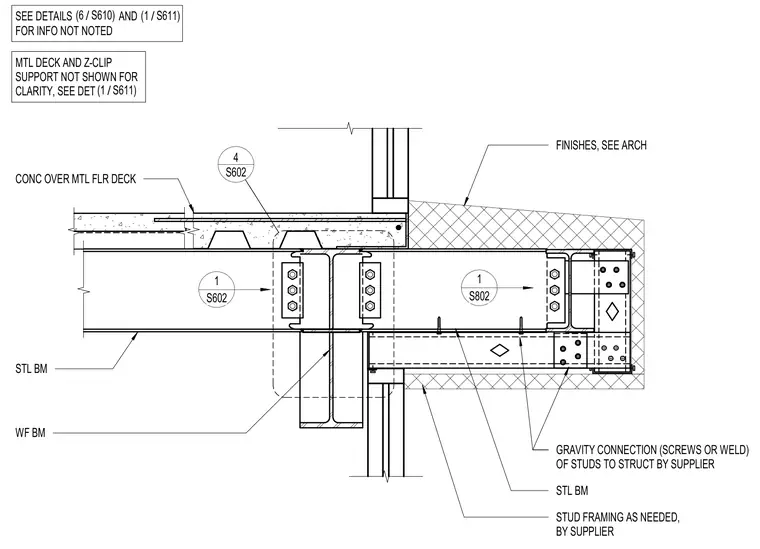

A structural steel connection frames a steel beam with a concrete over metal floor deck into a wide flange column. Shear tabs with bolts connect the steel beams to the column flanges on both sides. An exterior projection features additional steel beam framing connected with bolts and gravity studs for an overhang or shade structure. Stud framing and finishes are coordinated with architectural drawings, and metal deck supports are detailed in separate references.
CONC OVER MTL FLR DECK STL BM WF BM STL BM SEE DETAILS AND FOR INFO NOT NOTED / (1 S611) 1 S602 1 S802 S602 4 / (6 S610) FINISHES, SEE ARCH GRAVITY CONNECTION (SCREWS OR WELD) OF STUDS TO STRUCT BY SUPPLIER STUD FRAMING AS NEEDED, BY SUPPLIER MTL DECK AND Z-CLIP SUPPORT NOT SHOWN FOR CLARITY, SEE DET / (1 S611)
