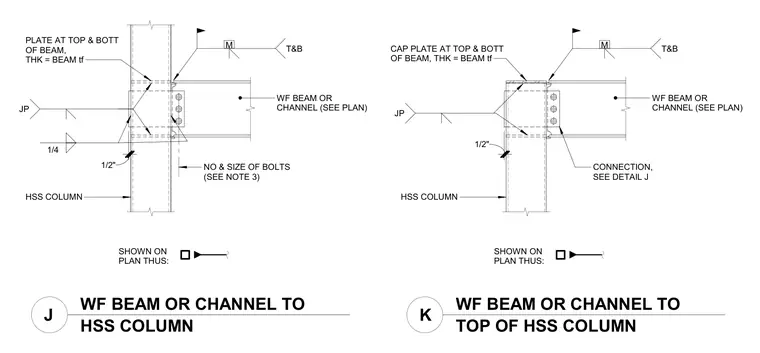

A wide flange beam or channel connects to a hollow structural section column using plates at the top and bottom of the beam with a thickness matching the beam flange. A bolted connection using specified bolt sizes and counts secures the beam web. Cap plates at the top and bottom of the HSS column integrate with welded connections indicated by standard weld symbols and dimensioned callouts.
WF BEAM OR CHANNEL TO J HSS COLUMN NO & SIZE OF BOLTS (SEE NOTE 3) HSS COLUMN WF BEAM OR CHANNEL (SEE PLAN) PLATE AT TOP & BOTT OF BEAM, THK = BEAM tf T&B 1/4 M SHOWN ON PLAN THUS: 1/2" WF BEAM OR CHANNEL TO K TOP OF HSS COLUMN HSS COLUMN WF BEAM OR CHANNEL (SEE PLAN) CAP PLATE AT TOP & BOTT OF BEAM, THK = BEAM tf T&B JP M SHOWN ON PLAN THUS: 1/2" CONNECTION, SEE DETAIL J JP
