BRBF Built-Up Beam Stub Connection at Column Strong Axis

Materials

Concrete Steel

Elements

Columns Beams Decks Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Deck Attachment

About this detail

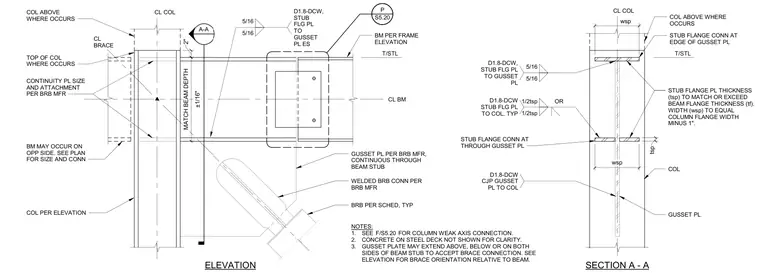

A buckling-restrained braced frame built-up beam stub connection at a steel column strong axis utilizes a continuous gusset plate passing through the beam stub to accept the brace connection, with plate dimensions and thicknesses sized per the manufacturer requirements. Stub flange plates connect to the column and gusset plate using specified fillet welds and complete joint penetration welds designed in accordance with D1.8 structural welding seismic requirements. Continuity plates are provided at the column web as required, and the beam stub depth matches the framing elevation within a tight tolerance.
