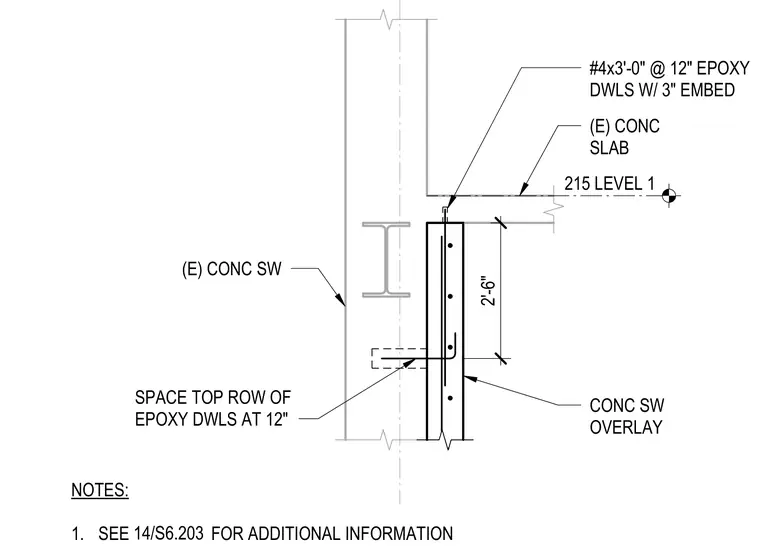

A concrete shear wall overlay connects to an existing concrete shear wall and slab at Level 1. The connection utilizes number 4 epoxy dowels measuring 3 feet long spaced at 12 inches on center with a 3-inch embedment into the concrete slab. A top row of epoxy dowels is spaced at 12 inches within the 2-foot-6-inch concrete shear wall overlay zone. Additional information is referenced on sheet 14/S6.203.
CONC SW OVERLAY SPACE TOP ROW OF EPOXY DWLS AT 12" (E) CONC SW (E) CONC SLAB #4x3'-0" @ 12" EPOXY DWLS W/ 3" EMBED 2'-6" NOTES: 1. SEE FOR ADDITIONAL INFORMATION 14/S6.203 215 LEVEL 1
