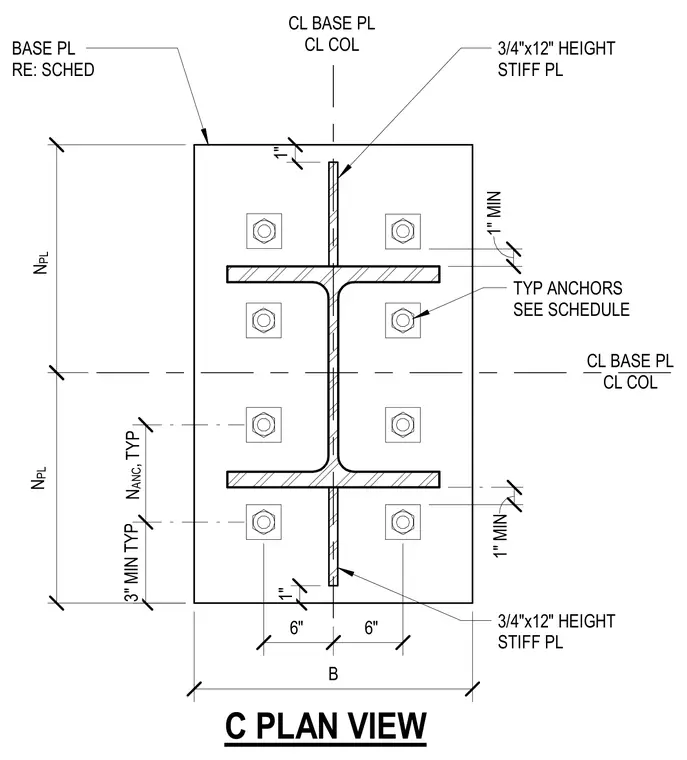

This plan view details a structural steel column base plate assembly featuring welded stiffener plates and perimeter anchor bolts. The steel column is centered on a rectangular base plate sized per the structural schedule, with three-quarter-inch by twelve-inch height stiffener plates welded along the flange centerlines. Eight anchor bolts are arranged symmetrically around the column flanges, maintaining typical edge distances and spacing dimensions as noted on the drawing.
CL BASE PL CL COL CL BASE PL CL COL C PLAN VIEW B BASE PL RE: SCHED 3" MIN TYP 6" 6" 1" MIN 3/4"x12" HEIGHT STIFF PL N ANC , TYP N PL TYP ANCHORS SEE SCHEDULE 1" 1" MIN 1" 3/4"x12" HEIGHT STIFF PL 1'-1" N PL
