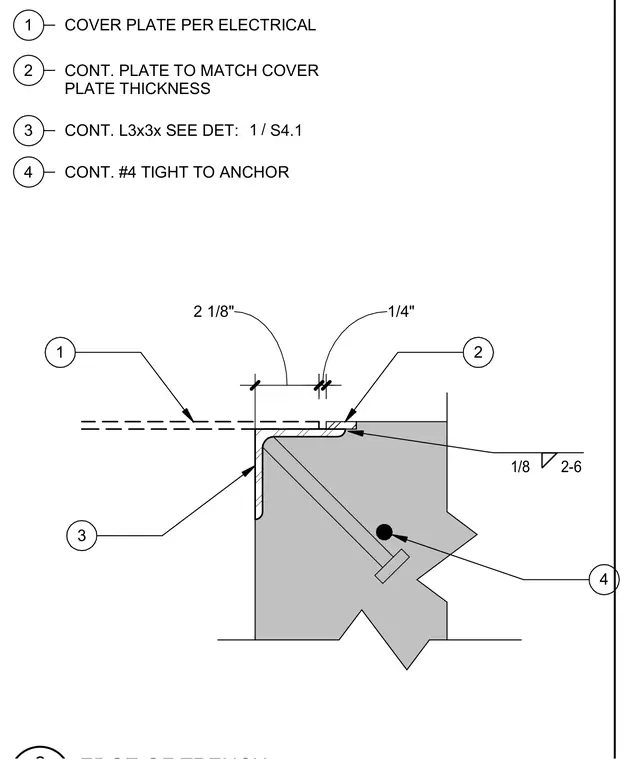

A continuous L3x3 angle frames the concrete trench edge and is secured with a continuous number 4 reinforcing bar positioned tight to the anchor. A continuous steel plate matches the thickness of the cover plate supplied by the electrical trade. A one-eighth-inch fillet weld secures the assembly with a length of two feet six inches.
2 1 COVER PLATE PER ELECTRICAL 2 CONT. PLATE TO MATCH COVER PLATE THICKNESS 3 CONT. L3x3x SEE DET: 4 CONT. #4 TIGHT TO ANCHOR 1/8 2-6 2 1/8" 1/4" 1 3 4 / 1 S4.1
