Structural · S-XKBN3

Slab on Metal Deck Bearing at Concrete Wall

Materials

Concrete Steel

Elements

Walls Floors / Slabs Decks Reinforcing

Connections

Rebar Splice / Development Deck Attachment

About this detail

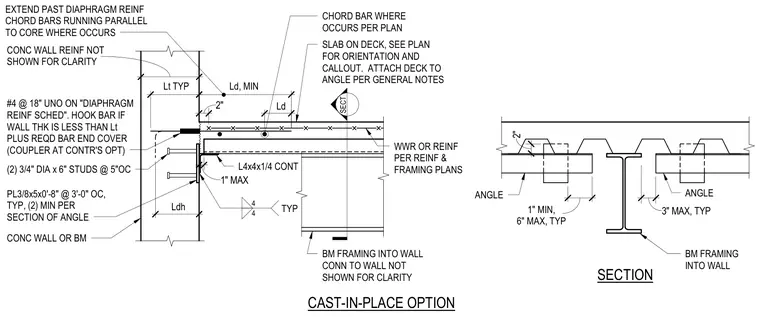

A continuous structural angle L4x4x1/4 is embedded against a concrete wall or beam with three-eighths by five-inch by zero-foot-eight-inch plates at three feet on center, secured by two three-quarter-inch diameter by six-inch shear studs at five inches on center. The slab on metal deck bears on the angle, with welded wire reinforcement or reinforcing per framing plans and chord bars extending past the diaphragm reinforcement. Number four bars at eighteen inches on center are provided unless otherwise noted on the diaphragm reinforcement schedule, with hooked bars used if the wall thickness is less than the development length plus required bar end cover. A coupler is permitted at the contractor's option.
