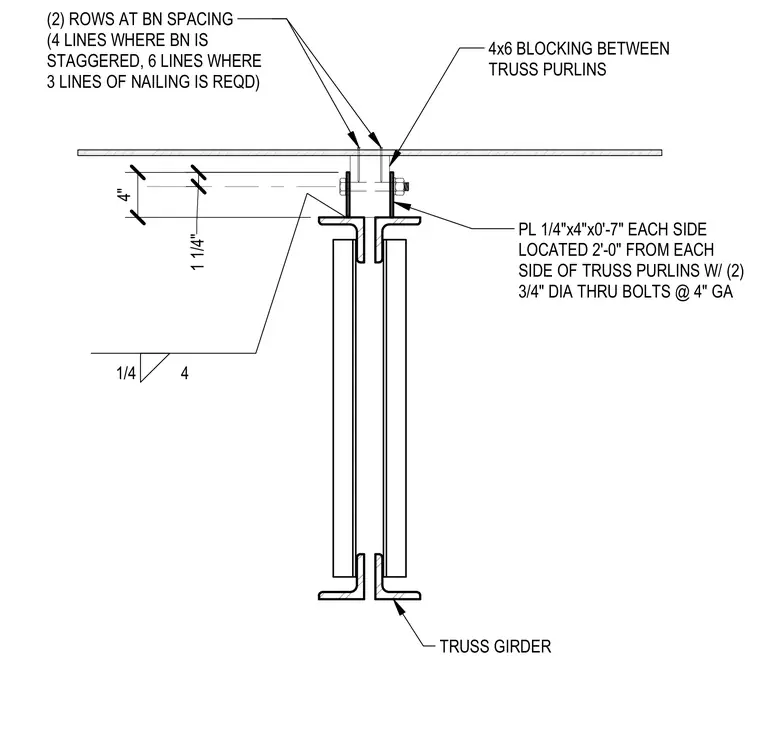

A 4x6 wood blocking sits between truss purlins with two rows of nailing at standard spacing, increasing to four lines when staggered or six lines where three lines are required. The blocking is secured using a quarter-inch by four-inch by seven-inch steel plate on each side, located two feet from each side of the truss purlins. Two three-quarter-inch diameter through bolts with a four-inch gauge connect the side plates to the blocking. A one-quarter-inch fillet weld secures the assembly to the truss girder.
(2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD) 4x6 BLOCKING BETWEEN TRUSS PURLINS PL 1/4"x4"x0'-7" EACH SIDE LOCATED 2'-0" FROM EACH SIDE OF TRUSS PURLINS W/ (2) 3/4" DIA THRU BOLTS @ 4" GA 1/4 4 TRUSS GIRDER 4" 1 1/4"
