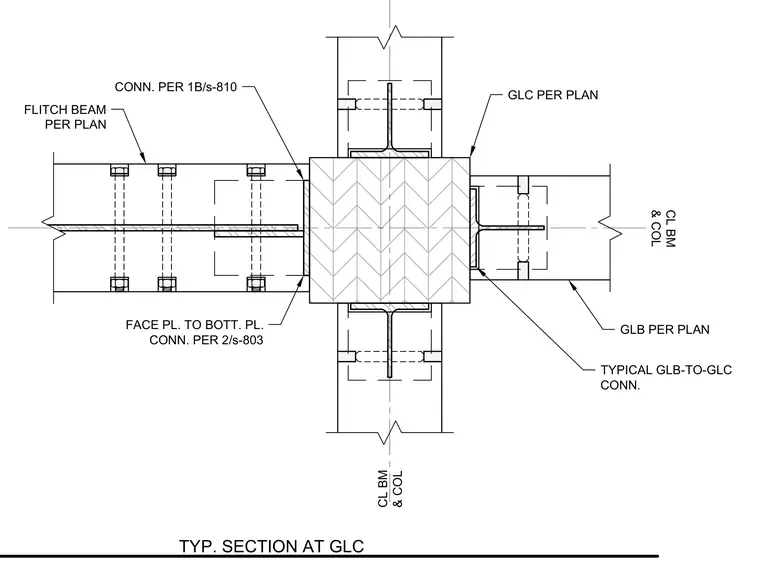

A glulam beam connects to a glulam column with a typical connection per plan, featuring a flitch beam assembly sized per plan. Face plates connect to bottom plates as specified in detail 2/s-803. Additional framing connections tie into the column per detail 1B/s-810. Centerlines of beams and columns align as shown in the section view.
FLITCH BEAM PER PLAN FACE PL. TO BOTT. PL. CONN. PER 2/s-803 TYPICAL GLB-TO-GLC CONN. GLB PER PLAN GLC PER PLAN CONN. PER 1B/s-810 CL BM & COL CL BM & COL TYP. SECTION AT GLC
