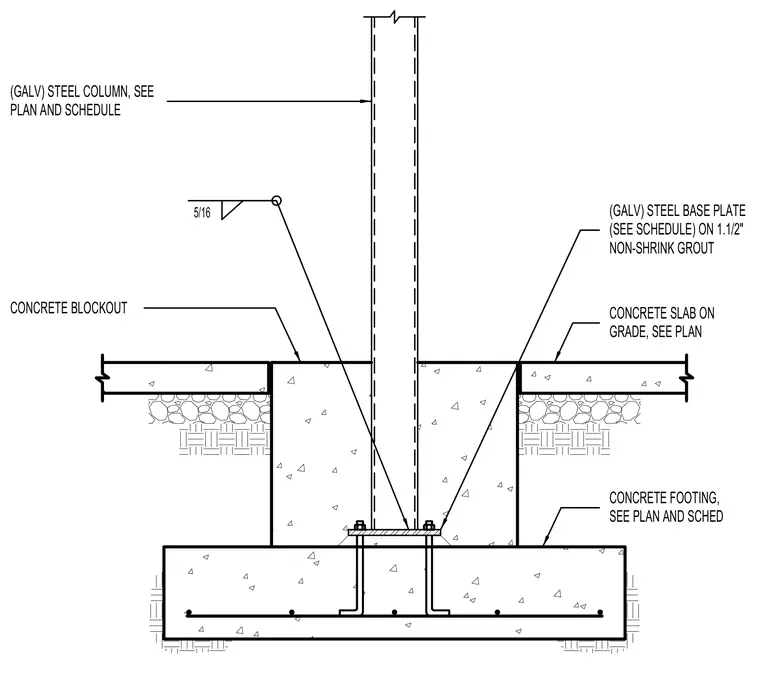

A galvanized steel column is welded to a galvanized steel base plate using a five-sixteenths inch fillet weld. The base plate rests on one and one-half inches of non-shrink grout atop a reinforced concrete footing, sized per plan and schedule. A concrete slab on grade abuts a concrete blockout surrounding the column base.
5/16 CONCRETE SLAB ON GRADE, SEE PLAN (GALV) STEEL BASE PLATE (SEE SCHEDULE) ON 1.1/2" NON-SHRINK GROUT CONCRETE FOOTING, SEE PLAN AND SCHED (GALV) STEEL COLUMN, SEE PLAN AND SCHEDULE CONCRETE BLOCKOUT
