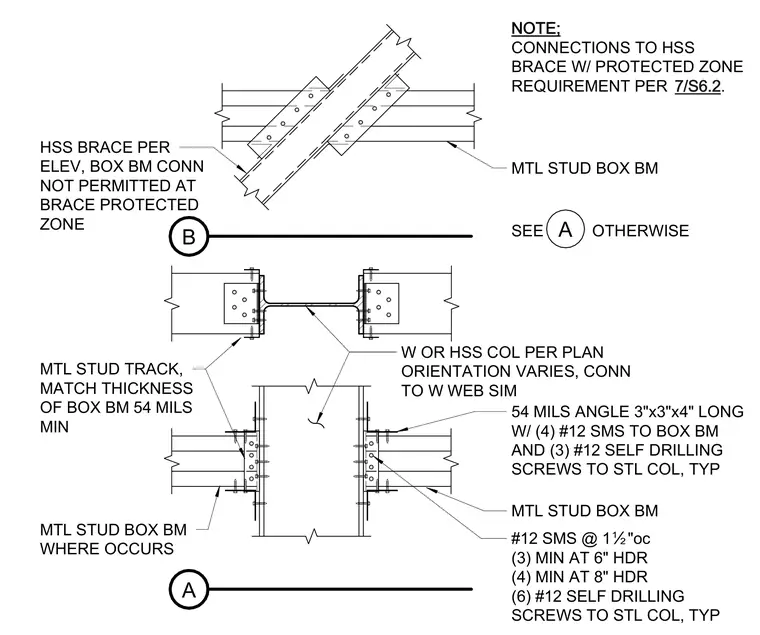

A fifty-four mils thick three-inch by three-inch by four-inch long angle clip connects cold-formed metal stud box headers to wide-flange or hollow structural section steel columns. The angle is secured to the box beam with four number twelve sheet metal screws and fastened to the steel column web or flange with three to six number twelve self-drilling screws depending on header depth. Metal stud tracks matching the fifty-four mils minimum thickness of the box beam are installed where the box header occurs. Connections are strictly prohibited within the protected zone of hollow structural section braces per engineering requirements.
HSS BRACE PER ELEV, BOX BM CONN NOT PERMITTED AT BRACE PROTECTED ZONE MTL STUD BOX BM SEE OTHERWISE A B A 54 MILS ANGLE 3"x3"x4" LONG W/ (4) #12 SMS TO BOX BM AND (3) #12 SELF DRILLING SCREWS TO STL COL, TYP MTL STUD BOX BM #12 SMS @ 1Ï"oc (3) MIN AT 6" HDR (4) MIN AT 8" HDR (6) #12 SELF DRILLING SCREWS TO STL COL, TYP MTL STUD TRACK, MATCH THICKNESS OF BOX BM 54 MILS MIN MTL STUD BOX BM WHERE OCCURS W OR HSS COL PER PLAN ORIENTATION VARIES, CONN TO W WEB SIM NOTE; CONNECTIONS TO HSS BRACE W/ PROTECTED ZONE REQUIREMENT PER . 7/S6.2
