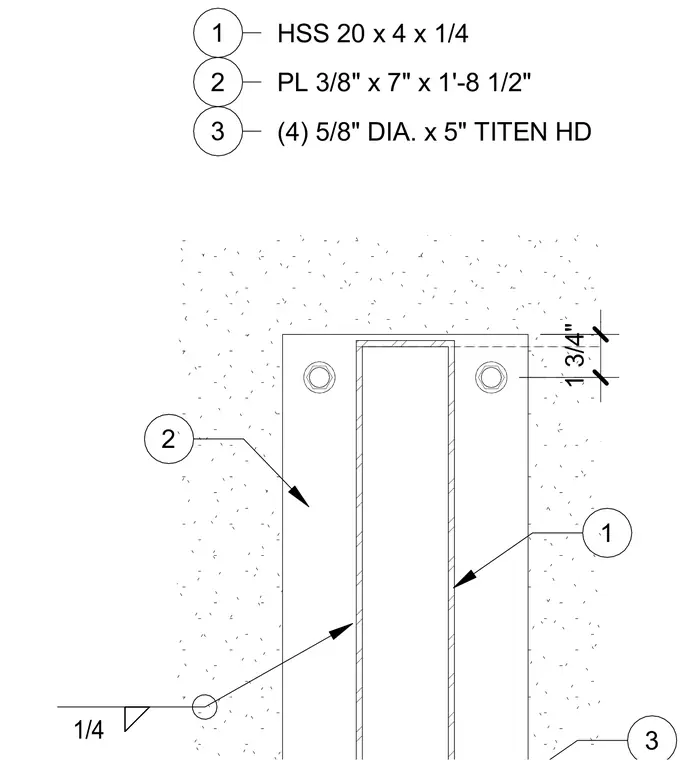

A hollow structural section measuring 20 inches by 4 inches with a 1/4 inch wall thickness is welded to a base plate measuring 3/8 inch by 7 inches by 1 foot 8 1/2 inches with a 1/4 inch fillet weld. The assembly is secured to a concrete substrate using four 5/8 inch diameter by 5 inch Titen HD heavy-duty concrete screw anchors. The base plate is anchored with specified edge distances and clearances.
1 3/4" 1 HSS 20 x 4 x 1/4 2 1 2 PL 3/8" x 7" x 1'-8 1/2" 3 (4) 5/8" DIA. x 5" TITEN HD 3 1/4
