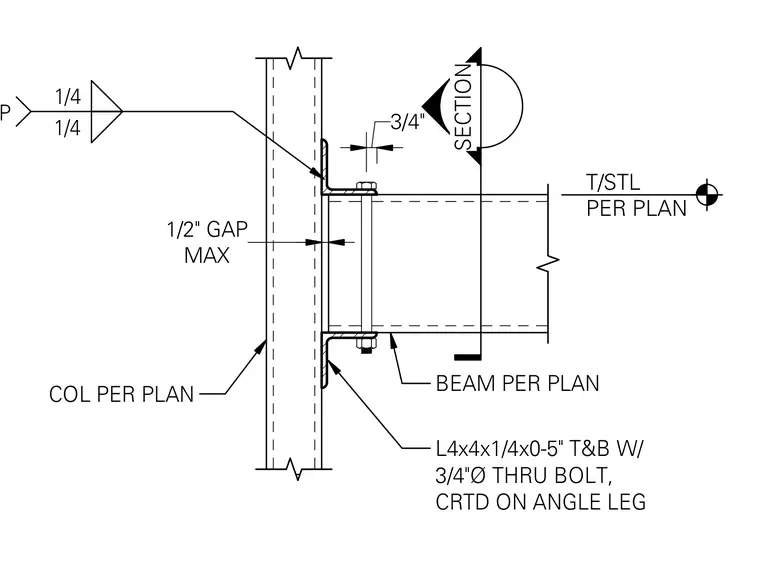

An HSS beam connects to an HSS column using top and bottom L4x4x1/4 structural angles welded to the column face with quarter-inch fillet welds and secured to the beam with three-quarter-inch diameter through-bolts. A one-half-inch maximum gap is maintained between the beam end and the column face. The angles are cropped on the outstanding leg to accommodate the geometry.
COL PER PLAN T/STL PER PLAN 1/4 1/4 TYP BEAM PER PLAN L4x4x1/4x0-5" T&B W/ 3/4"Ø THRU BOLT, CRTD ON ANGLE LEG 3/4" MAX 1/2" GAP SECTION
