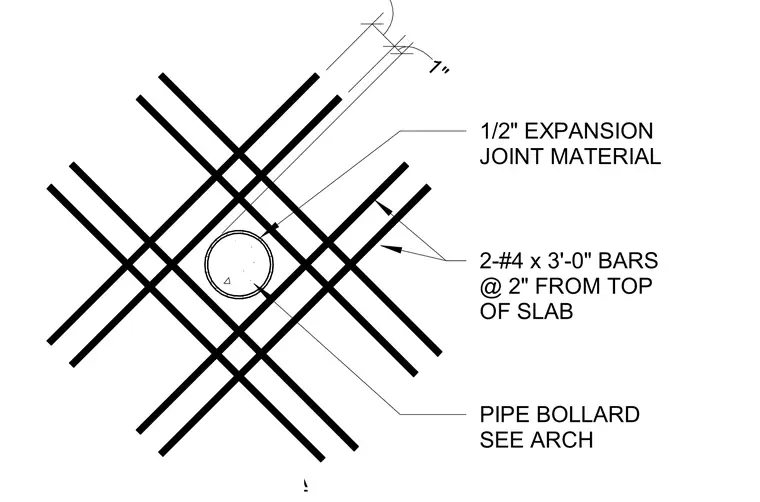

Reinforcement for a pipe bollard embedded in a concrete slab consists of two number four reinforcing bars, each three feet long, positioned two inches below the top of the slab. A one-half inch thick expansion joint material surrounds the pipe bollard to isolate it from the surrounding concrete. Refer to architectural drawings for pipe bollard installation requirements.
Text on the drawing
DETAIL BOOK REF. 2-#4 x 3'-0" BARS @ 2" FROM TOP OF SLAB 1/2" EXPANSION JOINT MATERIAL PIPE BOLLARD SEE ARCH DETAIL A-A 1" 3"
