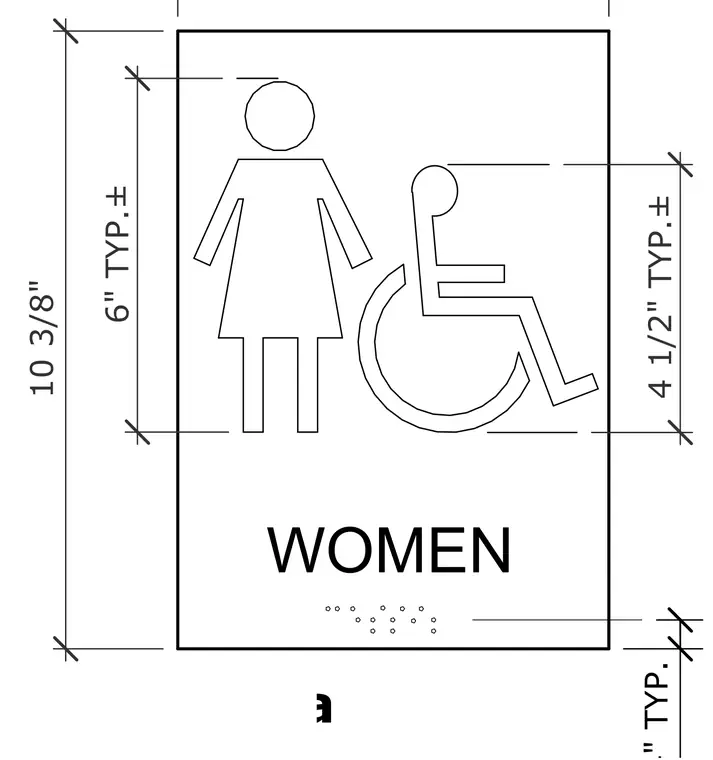

This assembly defines the standard layout for an accessible women's restroom sign, measuring 10 3/8 inches in total height. The international gender pictograph is positioned with a typical height of 6 inches, while the wheelchair accessibility symbol is set at a typical height of 4 1/2 inches. Braille text is located below the 'WOMEN' lettering, with a typical spacing of 7 1/4 inches from the top edge of the sign. All dimensions are marked as typical and approximate to ensure compliance with accessibility standards.
Text on the drawing
RS-3a BRAILLE (TYPICAL) MEN WOMEN 7 1/4" 10 3/8" 6" TYP.± 4 1/2" TYP.± INTERNATIONAL GENDER PICTOGRAPH (TYPICAL) RS-3b
