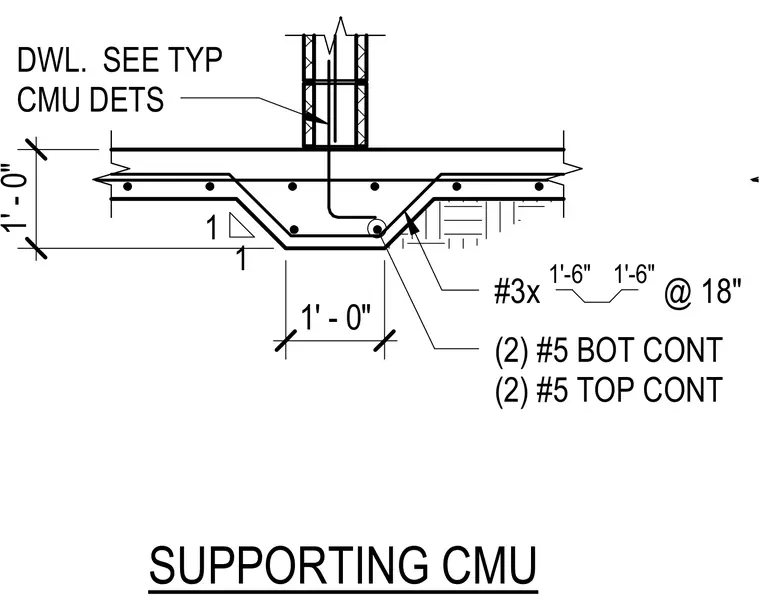

A concrete masonry unit wall bears on a reinforced concrete thickened slab section. The thickened slab features two number five bottom continuous reinforcing bars and two number five top continuous reinforcing bars, with number three ties spaced at eighteen inches on center. Dowels anchor the masonry wall into the thickened concrete foundation.
(2) #5 BOT CONT (2) #5 TOP CONT #3x @ 18" DWL. SEE TYP CMU DETS SUPPORTING CMU 1' - 0" 1'-6" 1'-6" 1 1 1' - 0"
