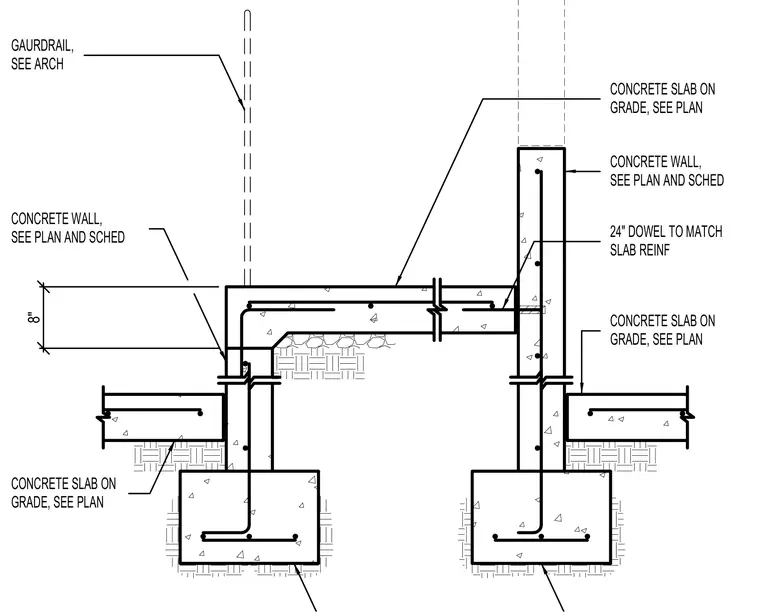

An eight-inch concrete slab on grade forms the ramp surface, spanning between vertical concrete walls supported by concrete spread footings. Twenty-four inch dowels tie the slab reinforcing into the concrete wall. A guardrail is mounted to the edge of the ramp slab per architectural drawings.
8" CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE WALL, SEE PLAN AND SCHED 24" DOWEL TO MATCH SLAB REINF CONCRETE SLAB ON GRADE, SEE PLAN GAURDRAIL, SEE ARCH CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE WALL, SEE PLAN AND SCHED
