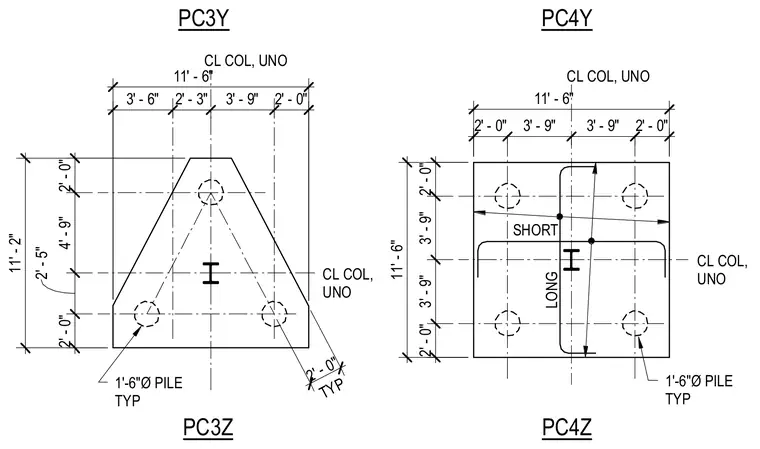

Concrete pile caps are detailed in plan view with centerlines for columns unless otherwise noted and typical eighteen-inch diameter piles. Cap PC3Y and PC3Z feature a triangular configuration measuring eleven feet six inches by eleven feet two inches with three typical piles. Cap PC4Y and PC4Z feature a rectangular configuration measuring eleven feet six inches by eleven feet six inches with four typical piles and short and long reinforcement indications.
PC4Y PC3Y PC3Z CL COL, UNO CL COL, UNO 11' - 6" 3' - 6" 2' - 3" 3' - 9" 2' - 0" 2' - 0" 2' - 5" 4' - 9" 2' - 0" 11' - 2" 1'-6"Ø PILE TYP TYP 2' - 0" PC4Z CL COL, UNO CL COL, UNO 11' - 6" 2' - 0" 3' - 9" 3' - 9" 2' - 0" 2' - 0" 3' - 9" 3' - 9" 2' - 0" 11' - 6" 1'-6"Ø PILE TYP SHORT LONG
