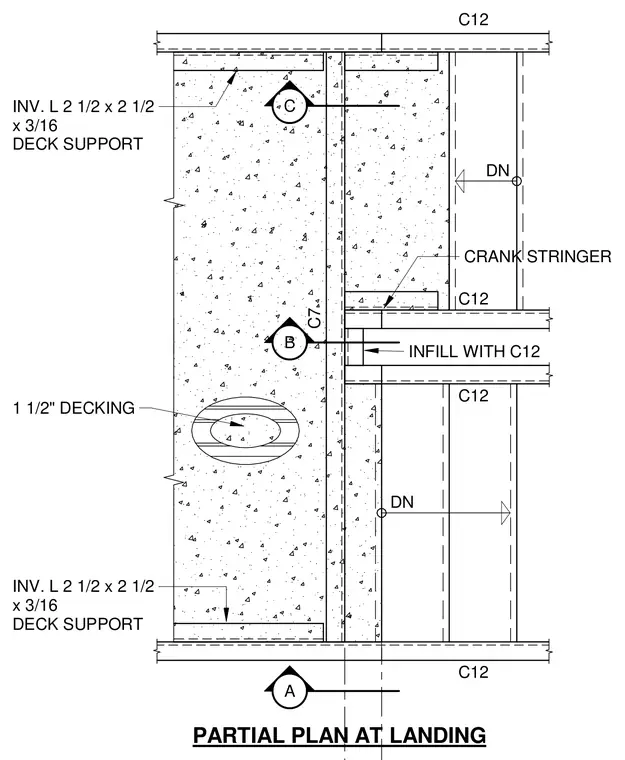

This partial plan details the framing layout at a stair landing, utilizing C12 channel sections for stringers and infill framing. Inverted 2 1/2 x 2 1/2 x 3/16 inch angles provide deck support along the perimeter. The landing slab is constructed with 1 1/2 inch metal decking.
C12 C7 C12 C12 C12 INV. L 2 1/2 x 2 1/2 x 3/16 DECK SUPPORT INV. L 2 1/2 x 2 1/2 x 3/16 DECK SUPPORT INFILL WITH C12 DN CRANK STRINGER DN PARTIAL PLAN AT LANDING 1 1/2" DECKING C B A
