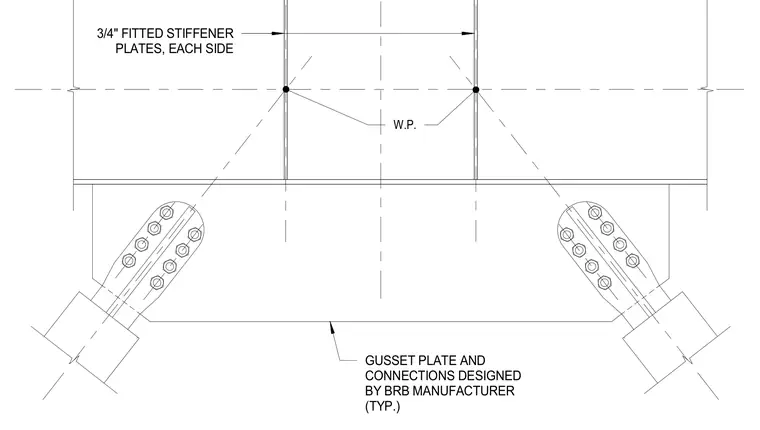

Three-quarter-inch fitted stiffener plates are installed on each side of the gusset plate at the working points. The gusset plate and its connections are designed by the buckling-restrained braced frame manufacturer typically. Work points are established along the centerline matching the framing geometry.
W.P. 3/4" FITTED STIFFENER PLATES, EACH SIDE GUSSET PLATE AND CONNECTIONS DESIGNED BY BRB MANUFACTURER (TYP.)
