A wide-flange steel column is topped with a cap plate measuring one-half inch thick at W10 or W8 shapes, or seven-eighths inch thick at W14 or W12 shapes, unless otherwise noted. The cap plate is welded to the column flanges with a three-eighths inch fillet weld typical at the flange, and to the column web with a weld sized to half the web thickness typical at the web. A shear tab is provided where it occurs to receive framing members. The connection details transfer gravity loads from framing beams into the vertical structural column.

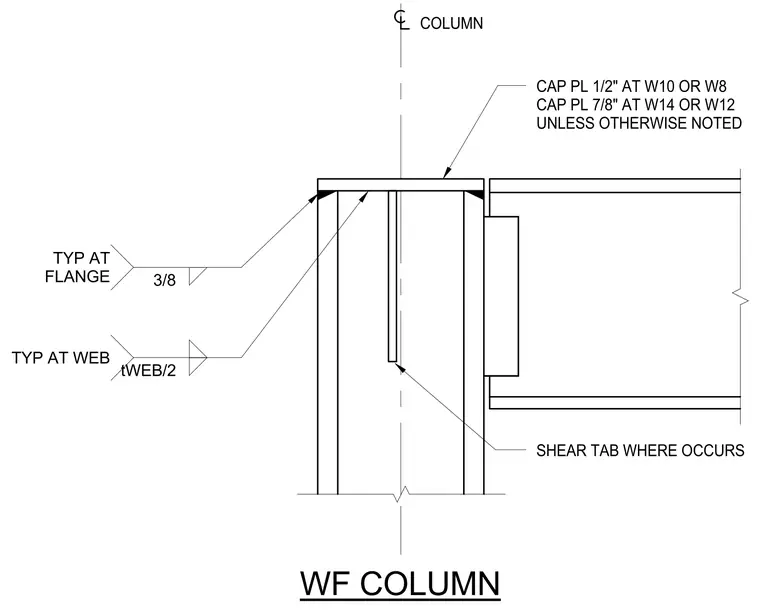

CAP PL 1/2" AT W10 OR W8 CAP PL 7/8" AT W14 OR W12 UNLESS OTHERWISE NOTED SHEAR TAB WHERE OCCURS COLUMN tWEB/2 TYP AT WEB 3/8 TYP AT FLANGE WF COLUMN
