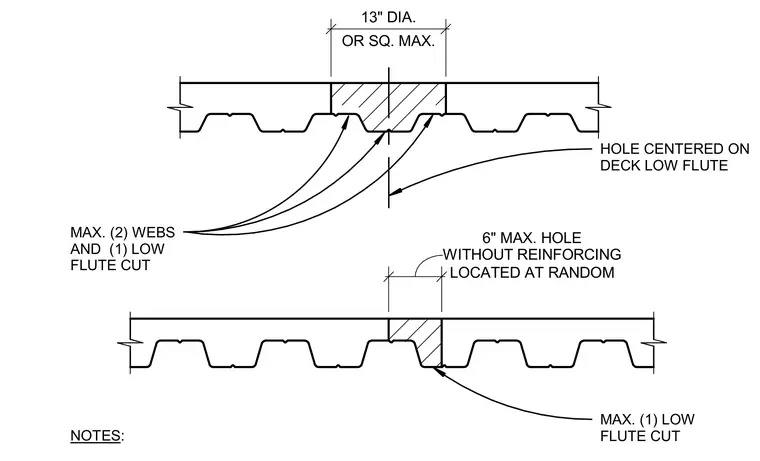

Unreinforced concrete deck openings are permitted up to a maximum size of thirteen inches in diameter or square when centered on the deck low flute, or up to six inches when located at random. The thirteen-inch opening is restricted to a maximum of two webs and one low flute cut. The six-inch random opening is restricted to a maximum of one low flute cut.
HOLE CENTERED ON DECK LOW FLUTE MAX. (2) WEBS AND (1) LOW FLUTE CUT MAX. (1) LOW FLUTE CUT OR SQ. MAX. 13" DIA. LOCATED AT RANDOM 6" MAX. HOLE WITHOUT REINFORCING NOTES:
