Structural · S-XH7C5

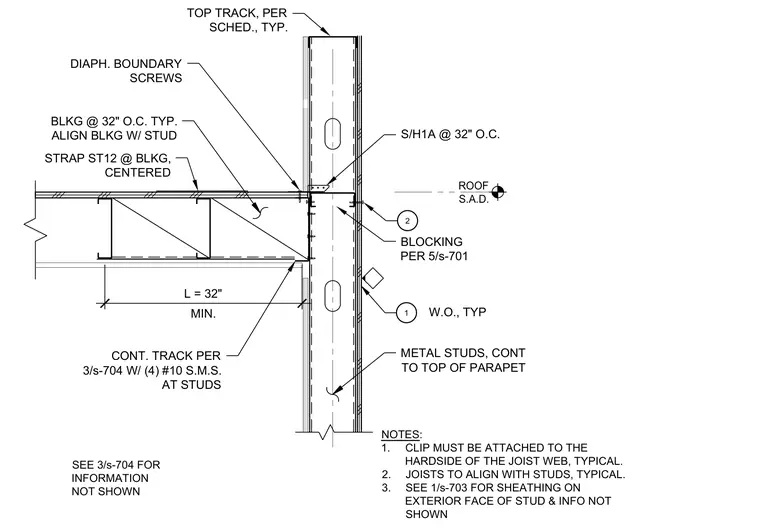

Parapet Detail at Floor Perpendicular to Joists

Materials

Cold-formed Steel Timber / Wood Metal (misc.)

Elements

About this detail

Cold-formed steel metal studs run continuously to the top of the parapet and terminate at a top track sized per schedule. Roof joists frame perpendicular to the stud wall with the clip attached to the hardside of the joist web typical, and joists aligned with studs. A continuous track per detail 3/s-704 is fastened with four number 10 sheet metal screws at each stud. Blocking is placed at thirty-two inches on center aligned with the studs, accompanied by a centered ST12 strap. Diaphragm boundary screws secure the assembly along the roof line.
