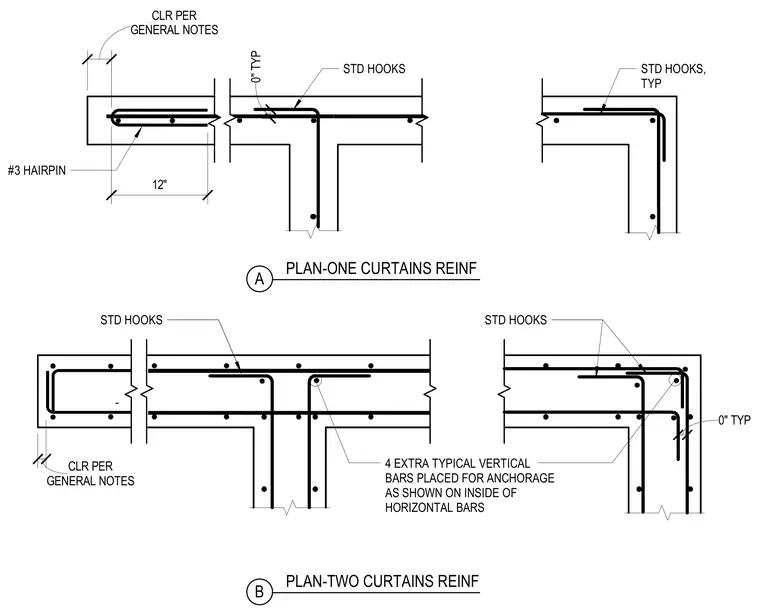

Concrete curb intersections are reinforced with standard hooks on horizontal and vertical bars conforming to general structural notes for clearance. Single-curtain reinforcement utilizes number three hairpins spaced at twelve inches on center. Two-curtain reinforcement incorporates four extra typical vertical bars placed for anchorage on the inside of the horizontal bars.
STD HOOKS 4 EXTRA TYPICAL VERTICAL BARS PLACED FOR ANCHORAGE AS SHOWN ON INSIDE OF HORIZONTAL BARS STD HOOKS STD HOOKS STD HOOKS STD HOOKS, TYP GENERAL NOTES CLR PER 0" TYP GENERAL NOTES CLR PER #3 HAIRPIN 12" 0" TYP A PLAN-ONE CURTAINS REINF B PLAN-TWO CURTAINS REINF
