A half-inch thick steel embed plate utilizes six three-quarter-inch diameter by six-inch long headed anchor studs. A second configuration consists of a one-and-a-quarter-inch thick steel embed plate anchored by four number seven reinforcing bars. These bars require a standard hook with a minimum twenty-inch length, unless a thirty-inch straight bar length is achievable. A seven-sixteenths-inch fillet weld is typical for the connection of the anchors to the plate.

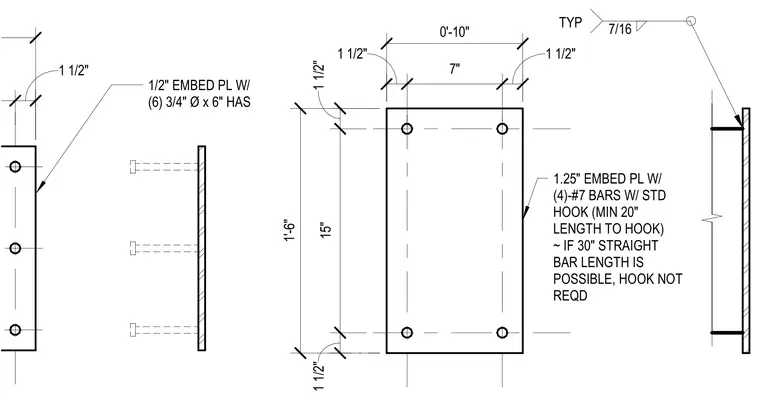

Text on the drawing
1/2" EMBED PL W/ (6) 3/4" Ø x 6" HAS 0'-3" 0'-6" 0'-3" 0'-2" 0'-4" 0'-4" 0'-2" 0'-2" 1 1/2" 7" 1 1/2" 1 1/2" 15" 1.25" EMBED PL W/ (4)-#7 BARS W/ STD HOOK (MIN 20" LENGTH TO HOOK) ~ IF 30" STRAIGHT BAR LENGTH IS POSSIBLE, HOOK NOT REQD 1'-6" 0'-10" 7/16 TYP
