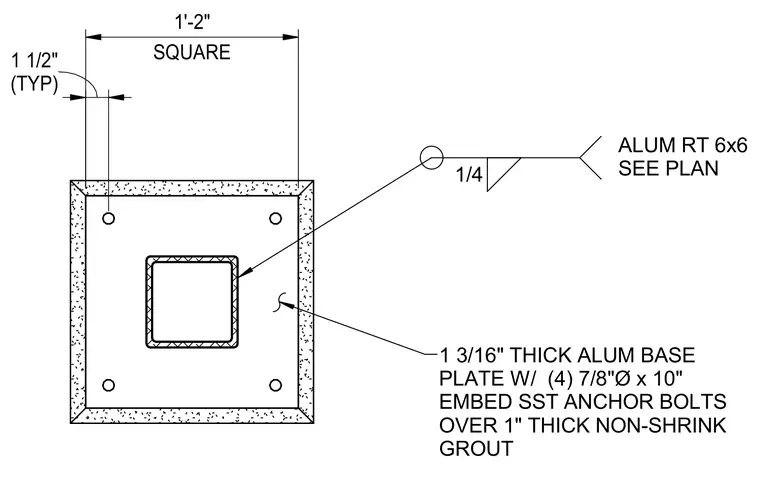

An aluminum rectangular tube measuring 6x6 inches is welded with a one-quarter inch fillet weld to a thirteen-sixteenths inch thick aluminum base plate. The square base plate measures one foot two inches across with typical one-and-one-half inch offsets and is secured by four seven-eighths inch diameter by ten-inch embedded stainless steel anchor bolts. The entire assembly bears over a one-inch thick layer of non-shrink grout.
SQUARE 1'-2" (TYP) 1 1/2" 1 3/16" THICK ALUM BASE PLATE W/ (4) 7/8"Ø x 10" EMBED SST ANCHOR BOLTS OVER 1" THICK NON-SHRINK GROUT 1/4 ALUM RT 6x6 SEE PLAN
