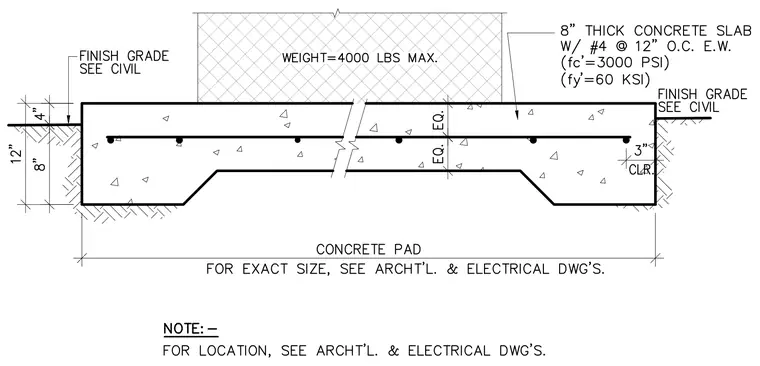

An eight-inch thick concrete slab with compressive strength of 3000 PSI and yield strength of 60 KSI is reinforced with number four bars at twelve inches on center each way. The pad features a thickened edge extending twelve inches total depth with a three-inch concrete clearance. Finish grade is coordinated per civil drawings, supporting a maximum equipment weight of 4000 pounds. Exact pad dimensions and location are determined per architectural and electrical drawings.
