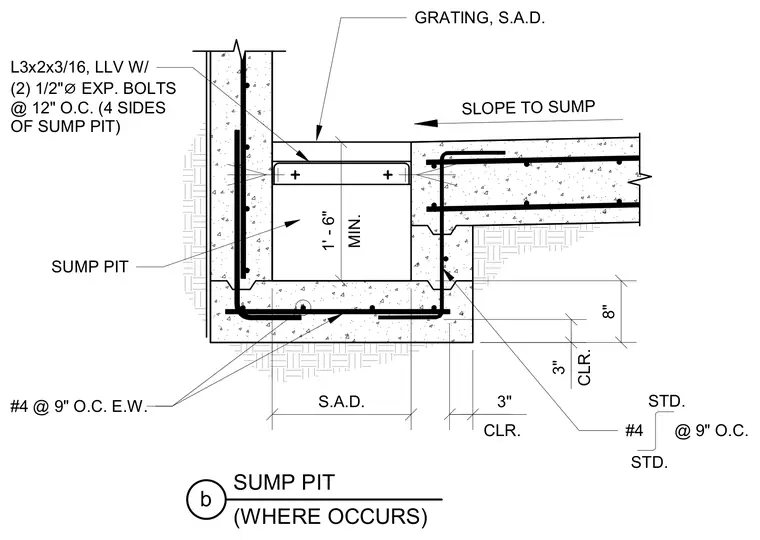

A concrete sump pit is detailed with reinforced walls and base slab incorporating number four reinforcing bars at nine inches on center each way. An L3x2x3/16 angle is anchored to the pit wall with two half-inch diameter expansion bolts at twelve inches on center along all four sides to support a grating. The adjacent concrete slab slopes toward the sump pit with a minimum depth of one foot six inches and maintains standard concrete clearances.
L3x2x3/16, LLV W/ (2) 1/2" ⌀ EXP. BOLTS @ 12" O.C. (4 SIDES OF SUMP PIT) SUMP PIT #4 @ 9" O.C. E.W. GRATING, S.A.D. SLOPE TO SUMP #4 @ 9" O.C. STD. STD. MIN. 1' - 6" S.A.D. 8" CLR. CLR. SUMP PIT b (WHERE OCCURS) 3" 3"
