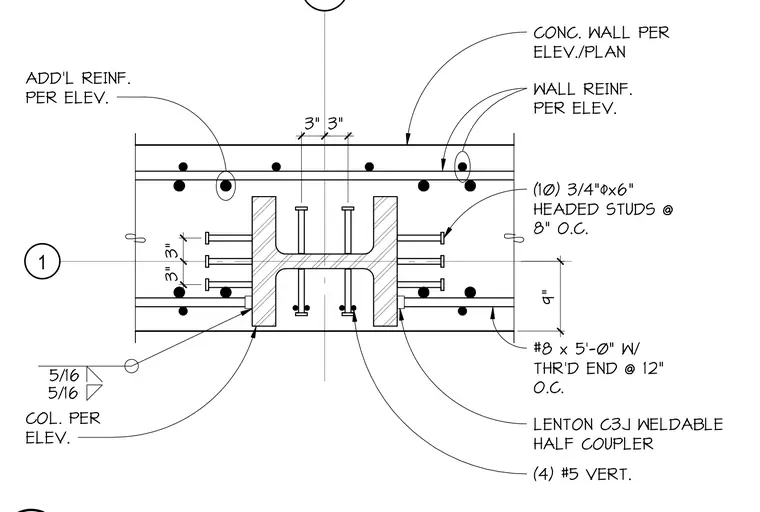

A structural steel column embedded within a concrete wall utilizes Lenton C3J weldable half couplers welded with five-sixteenths inch fillet welds. Ten three-quarter inch diameter by six inch long headed studs are spaced at eight inches on center along the column flange. Additional reinforcement includes number eight bars at five feet zero inches with threaded ends at twelve inches on center, alongside four number five vertical reinforcing bars per elevation. Wall and column reinforcement are sized per plan.
1 3" 3" 3" 3" CONC. WALL PER ELEV./PLAN WALL REINF. PER ELEV. (10) 3/4" x6" HEADED STUDS @ 8" O.C. ADD'L REINF. PER ELEV. COL. PER ELEV. 5/16 5/16 #8 x 5'-0" W/ THR'D END @ 12" O.C. 9" LENTON C3J WELDABLE HALF COUPLER (4) #5 VERT.
