Structural · S-XG7RH

Slab Edge and Floor Opening Details

Materials

Concrete Reinforced Concrete Steel Timber / Wood

Elements

Beams Floors / Slabs Decks Connections / Plates Reinforcing Roof / Floor Openings

Connections

Bolted Connection

About this detail

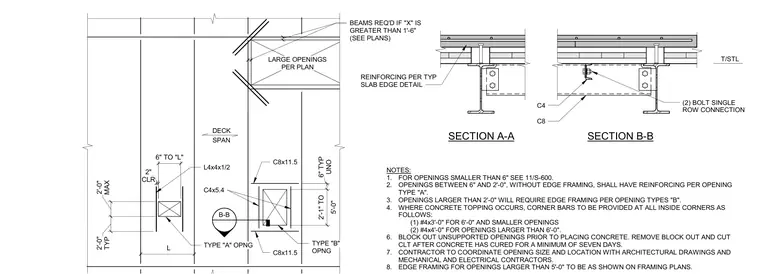

Slab edge conditions and structural framing details are provided for floor openings in a composite floor system. Section A-A and Section B-B show steel beams, channel sections such as C8x11.5 and C4, and bolted single-row angle connections supporting the deck. Plan details outline framing layouts for Type A and Type B openings with associated dimensions and clearance requirements. Notes specify reinforcement criteria, corner bar placements for concrete toppings, and procedures for blocking out and cutting cross-laminated timber after concrete cure.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
