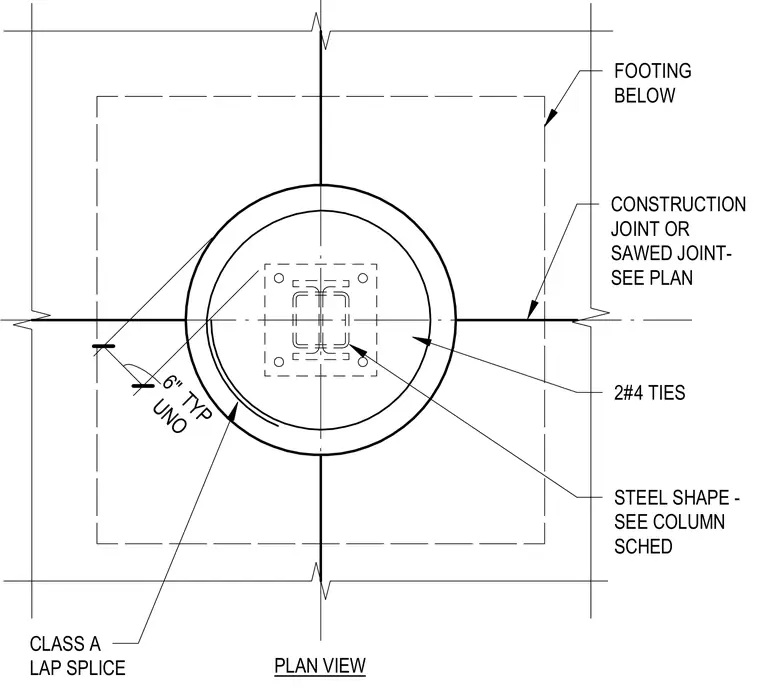

This plan view details a structural steel column supported by a concrete footing with a surrounding pier. The column shape is positioned at the center of the footing, with dimensions and sizing directed by the column schedule unless otherwise noted. A circular pier with two number four ties surrounds the base connection. Construction joints or sawed joints are marked across the slab footprint per the plan layout. Reinforcement details include a class A lap splice at six inches typically unless noted otherwise.
2#4 TIES CONSTRUCTION JOINT OR SAWED JOINT- SEE PLAN PLAN VIEW FOOTING BELOW CLASS A LAP SPLICE STEEL SHAPE - SEE COLUMN SCHED UNO 6" TYP
