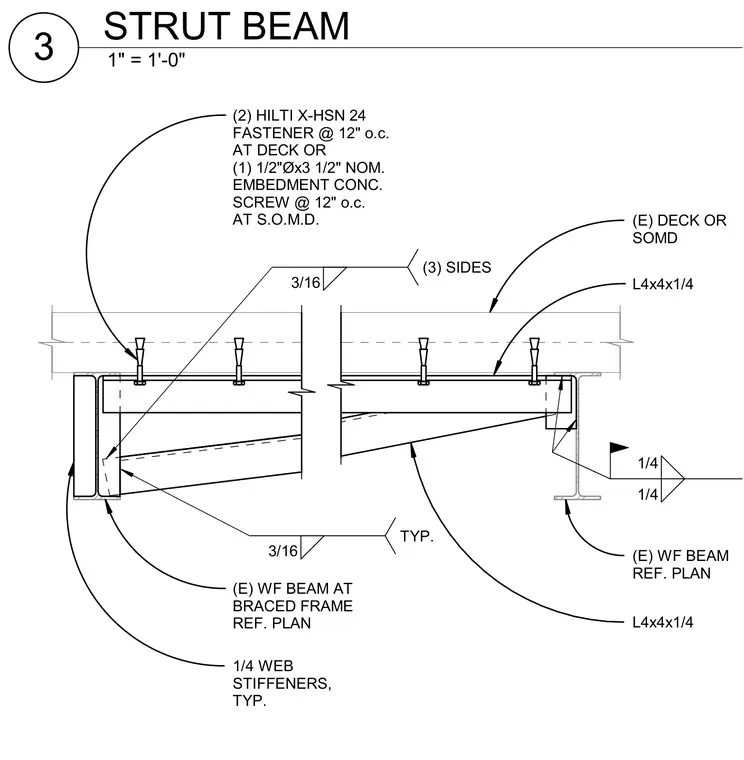

A strut beam connection ties into an existing wide flange beam at a braced frame. An L4x4x1/4 angle attaches to the existing deck or steel-on-metal deck using either two Hilti X-HSN 24 fasteners at twelve inches on center or one half-inch diameter by three and a half-inch nominal embedment concrete screw at twelve inches on center. A web stiffener measuring one-quarter inch is welded with a three-sixteenths fillet weld on three sides typically. The existing wide flange beam connects with quarter-inch fillet welds.
(E) DECK OR SOMD L4x4x1/4 (E) WF BEAM REF. PLAN L4x4x1/4 (E) WF BEAM AT BRACED FRAME REF. PLAN 1/4 WEB STIFFENERS, TYP. (2) HILTI X-HSN 24 FASTENER @ 12" o.c. AT DECK OR (1) 1/2"Øx3 1/2" NOM. EMBEDMENT CONC. SCREW @ 12" o.c. AT S.O.M.D. 3/16 (3) SIDES 3/16 TYP. 1/4 1/4 1" = 1'-0" 3 STRUT BEAM
