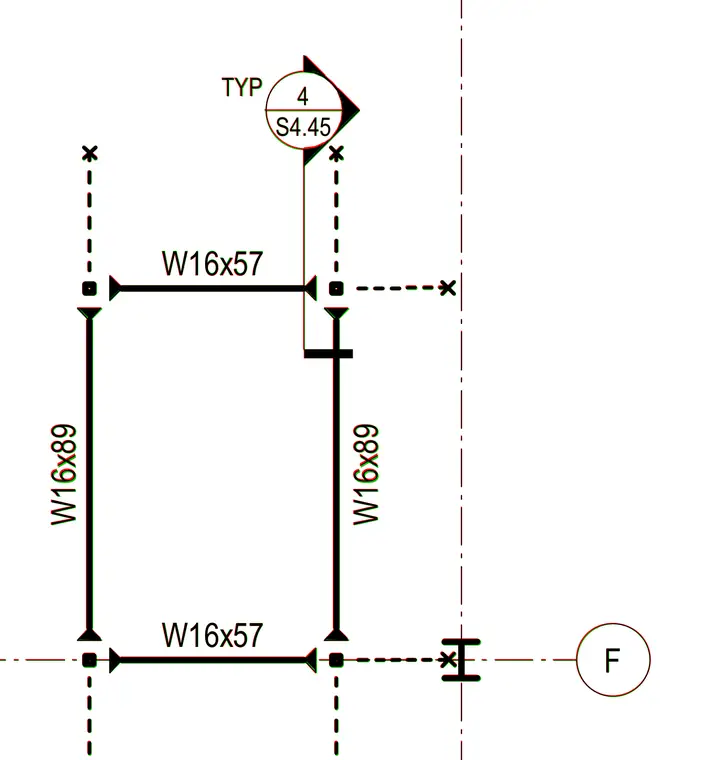

Framing plan detail showing W16x57 and W16x89 wide flange steel beams arranged in a typical configuration with centerlines. A detail reference bubble points to sheet S4.45.
F W16x57 W16x57 W16x89 W16x89 4 S4.45 TYP F W16x57 W16x57 W16x89 W16x89 4 S4.45 TYP
