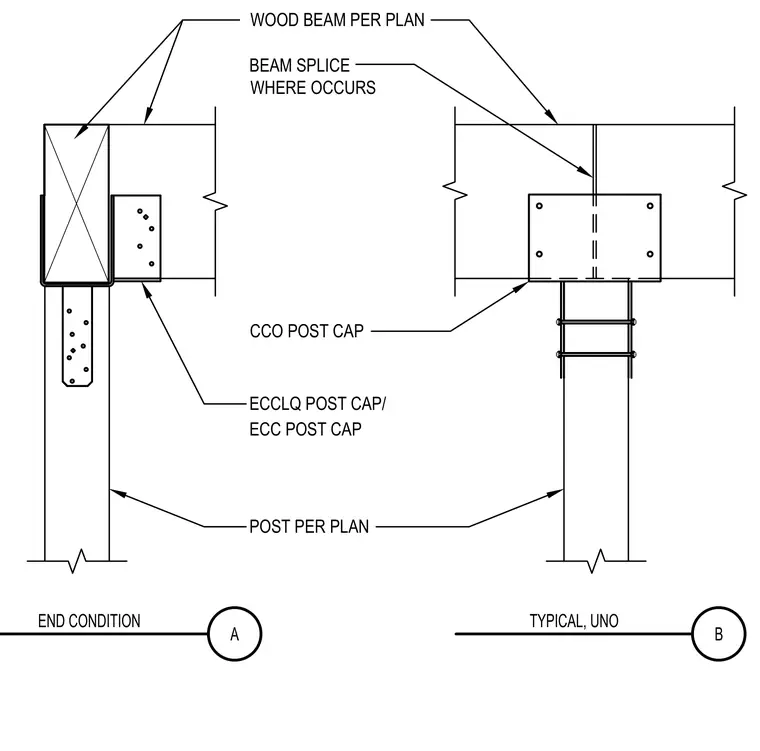

A wood beam specified per plan connects to a wood post using a CCO post cap for typical conditions or an ECCLQ/ECC post cap for end conditions. A beam splice occurs directly over the support where required. Fasteners secure the post cap brackets to both the framing members per the manufacturer specifications.
WOOD BEAM PER PLAN BEAM SPLICE WHERE OCCURS CCO POST CAP POST PER PLAN A END CONDITION B TYPICAL, UNO ECCLQ POST CAP/ ECC POST CAP
