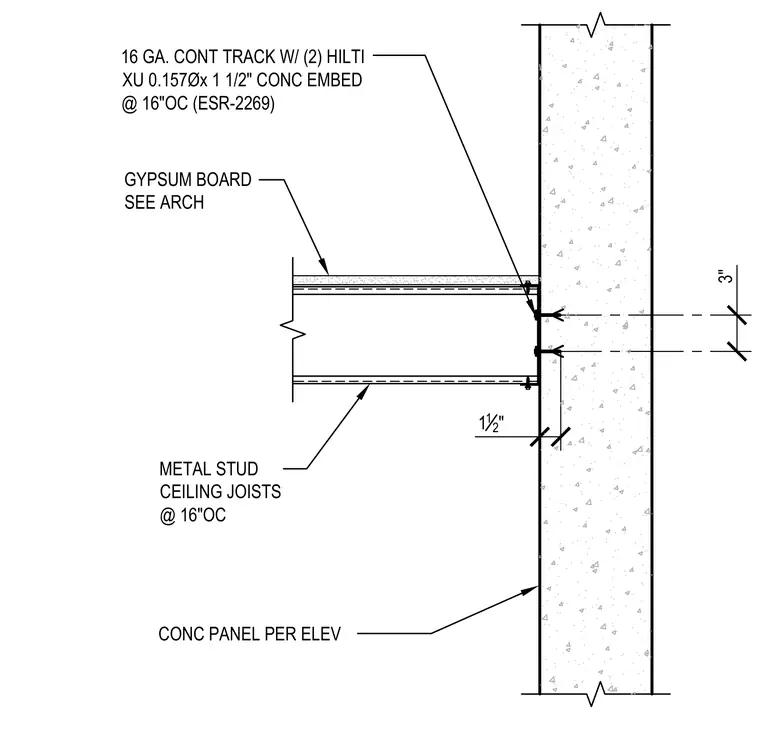

Metal stud ceiling joists spaced at sixteen inches on center bear against a concrete wall panel. A sixteen gauge continuous track secures the joists to the wall using two Hilti XU zero-point-one-five-seven diameter by one and a half inch concrete embeds at sixteen inches on center per ESR-2269. Gypsum board finishes the underside of the ceiling assembly per architectural drawings.
3" GYPSUM BOARD SEE ARCH 1 12 " METAL STUD CEILING JOISTS @ 16"OC 16 GA. CONT TRACK W/ (2) HILTI XU 0.157Øx 1 1/2" CONC EMBED @ 16"OC (ESR-2269) CONC PANEL PER ELEV
