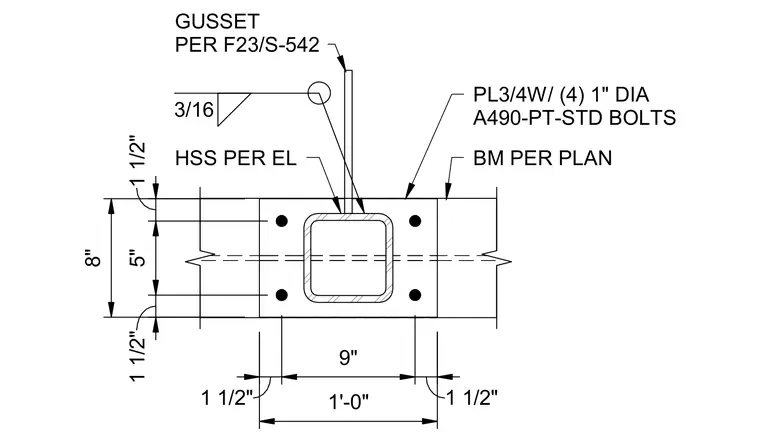

A three-quarter-inch plate connects to a hollow structural section column per elevations using a three-sixteenth-inch fillet weld. The assembly features a gusset plate specified per detail F23 on sheet S-542. Four one-inch diameter A490-PT-STD bolts secure the connection across an eight-inch by one-foot plate dimension with five-inch and nine-inch bolt spacings.
1 1/2" 5" 1 1/2" 1 1/2" 9" 1 1/2" GUSSET PER L F23/S-542 1'-0" 8" BM PER PLAN 3/16 PL3/4W/ (4) 1" DIA A490-PT-STD BOLTS HSS PER EL
