Typical Girt Column Support at Steel Beam

Materials

Steel Metal (misc.)

Elements

Columns Beams Facades / Cladding Roofs Decks Arches Bracing

Connections

HSS Connection Bracing Connection Welded Connection Bolted Connection Deck Attachment Expansion / Slip Connection

About this detail

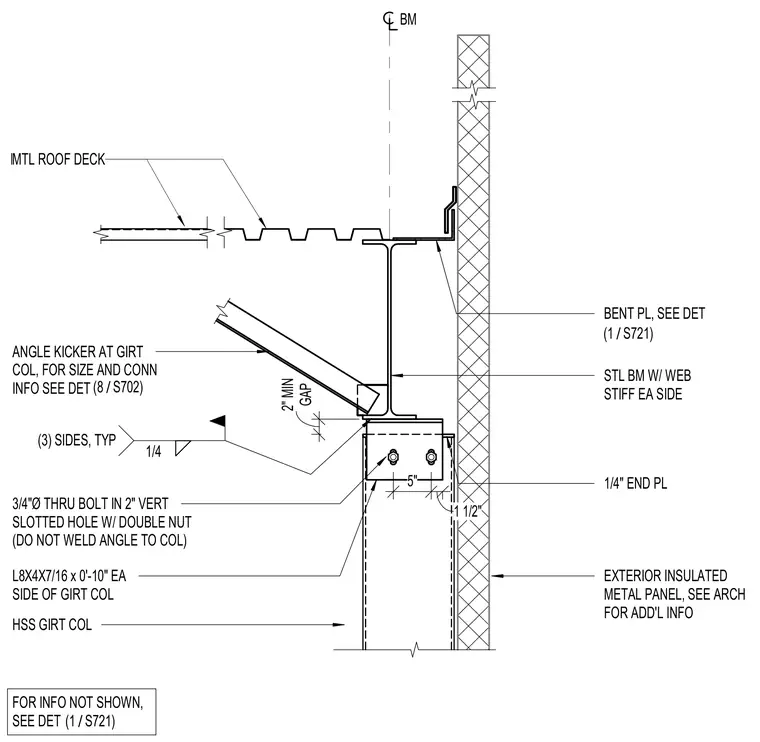

A hollow structural section girt column supports a steel beam carrying a metal roof deck and exterior insulated metal panels. The connection utilizes an L8x4x7/16 angle, measuring zero feet ten inches, located on each side of the girt column beneath a one-quarter-inch end plate welded on three sides with a quarter-inch fillet weld. A three-quarter-inch diameter through-bolt passes through a two-inch vertical slotted hole with a double nut, left unwelded to the column to provide a two-inch minimum gap. An angle kicker connects to the girt column with size and connection details referenced elsewhere. A bent plate flashing ties into the exterior insulated metal panel wall assembly at the roof line.
