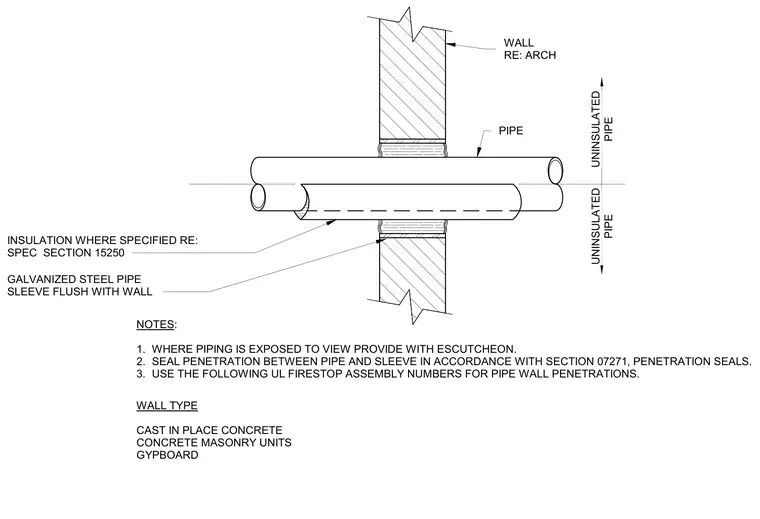

A pipe passes horizontally through an interior wall containing a galvanized steel pipe sleeve installed flush with the wall surfaces. The annular space between the pipe and sleeve is sealed in accordance with penetration seal specifications. Insulation is provided where specified, and exposed piping receives an escutcheon. Approved UL firestop assembly numbers govern pipe penetrations through cast-in-place concrete, concrete masonry units, and gypsum board wall types.
UNINSULATED PIPE UNINSULATED PIPE NOTES: 1. WHERE PIPING IS EXPOSED TO VIEW PROVIDE WITH ESCUTCHEON. 2. SEAL PENETRATION BETWEEN PIPE AND SLEEVE IN ACCORDANCE WITH SECTION 07271, PENETRATION SEALS. 3. USE THE FOLLOWING UL FIRESTOP ASSEMBLY NUMBERS FOR PIPE WALL PENETRATIONS. WALL TYPE CAST IN PLACE CONCRETE CONCRETE MASONRY UNITS GYPBOARD GALVANIZED STEEL PIPE SLEEVE FLUSH WITH WALL INSULATION WHERE SPECIFIED RE: SPEC SECTION 15250 PIPE WALL RE: ARCH
