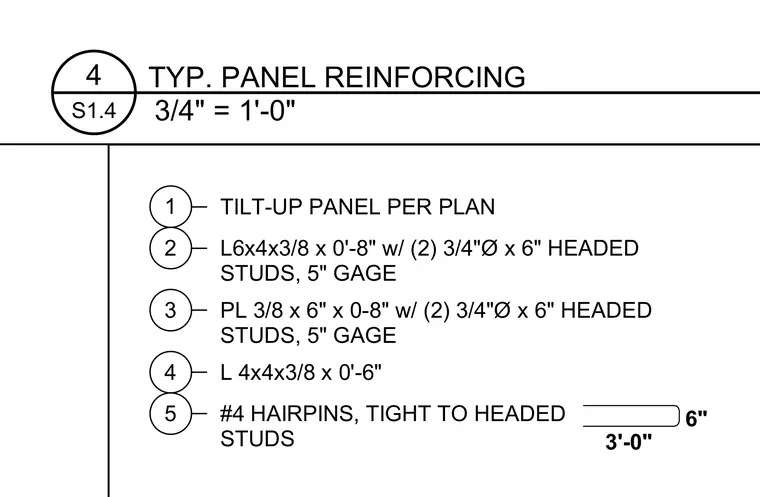

The tilt-up concrete wall panel is reinforced according to the architectural and structural plan. Embedded structural steel includes an L6x4x3/8 angle measuring eight inches long welded with two 3/4-inch diameter by 6-inch headed studs at a 5-inch gauge. A 3/8-inch by 6-inch by 0-foot-8-inch steel plate features two 3/4-inch diameter by 6-inch headed studs at a 5-inch gauge. An L4x4x3/8 angle measuring six inches long is provided. Number 4 hairpins are installed tight to the headed studs at a 3-foot-0-inch spacing with a 6-inch dimension.
1 TILT-UP PANEL PER PLAN 2 L6x4x3/8 x 0'-8" w/ (2) 3/4"Ø x 6" HEADED STUDS, 5" GAGE 3 PL 3/8 x 6" x 0-8" w/ (2) 3/4"Ø x 6" HEADED STUDS, 5" GAGE 4 L 4x4x3/8 x 0'-6" 5 #4 HAIRPINS, TIGHT TO HEADED STUDS 6" 3'-0" 3/4" = 1'-0" S1.4 4 TYP. PANEL REINFORCING
