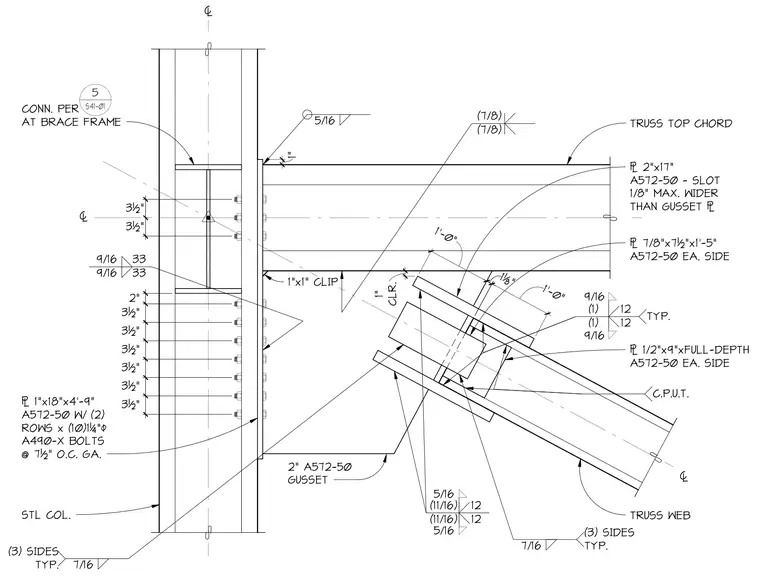

A structural steel connection details the intersection of a truss top chord and web with a steel column, incorporating a two-inch thick A572 Grade 50 gusset plate. The truss top chord features a one-by-eighteen-inch by four-foot-nine-inch A572 Grade 50 plate connected with two rows of ten one-and-one-quarter-inch diameter A490-X bolts at seven-and-a-half-inch on center gauge. Additional connection plates include seven-eighths-by-seven-and-a-half-inch by one-foot-five-inch A572 Grade 50 plates on each side of the chord, and a half-inch by nine-inch full-depth A572 Grade 50 plate on each side of the truss web. Fillet welds of five-sixteenths and seven-sixteenths inch size secure the connection elements, with three sides typically welded as indicated on the drawing. A one-inch clearance is maintained between intersecting members, and a slotted connection allows one-eighth inch maximum tolerance wider than the gusset plate.
3½" 3½" 1" 3½" 3½" 3½" 3½" 3½" 3½" 2" CLR. 1" 1 " 5/16 (7/8) (7/8) 7/16 (3) SIDES TYP. (11/16) 12 (11/16) 12 C.P.U.T. (1) 12 (1) 12 TYP. 7/16 (3) SIDES TYP. 5/16 9/16 33 9/16 33 9/16 TRUSS TOP CHORD 1"x18"x4' -9" A572-50 W/ (2) ROWS x (10)1¼"' A490-X BOLTS @ 7½" O.C. GA. 1"x1" CLIP CONN. PER AT BRACE FRAME 7/8"x7½"x1' -5" A572-50 EA. SIDE 2"x17" A572-50 - SLOT 1/8" MAX. WIDER THAN GUSSET 1/2"x9"xFULL -DEPTH A572-50 EA. SIDE TRUSS WEB 2" A572-50 GUSSET STL COL. 5 S41-01 / / / 1'-0" 1'-0" 5/16 9/16
