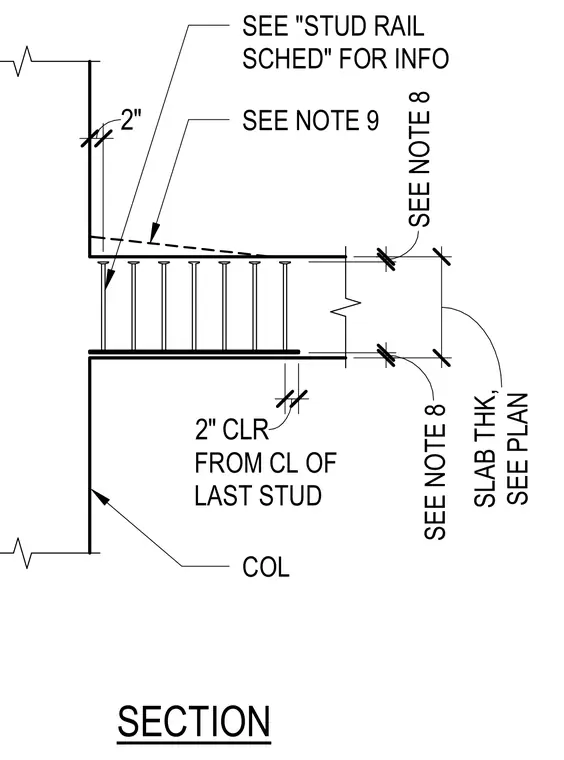

A concrete slab connects to a column with a shear stud rail assembly positioned at two inches clearance from the column face. The stud rail is installed according to the project stud rail schedule and general notes. The slab thickness is sized per the structural plans with specific edge clearances from the centerline of the last stud.
2" 2" CLR 3/4" 3/4" 15" SECTION COL SEE "STUD RAIL SCHED" FOR INFO FROM CL OF LAST STUD SEE NOTE 9 SEE NOTE 8 SLAB THK, SEE PLAN SEE NOTE 8
