About this detail

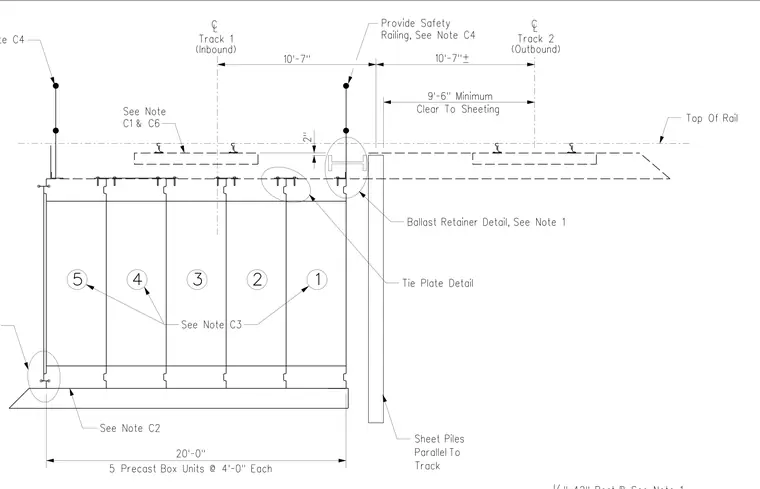

This structural section shows a multi-unit precast concrete box assembly supporting dual rail tracks with a total span comprising five precast box units at four feet each, totaling twenty feet. Safety railings are provided per note C4 on either side, with track centerlines established for inbound and outbound tracks. A ballast retainer detail is indicated alongside sheet piles running parallel to the track. Minimum clearances are specified from the top of rail to sheeting, along with tie plate and precast unit connection details referencing notes C1, C2, C3, and C6.
